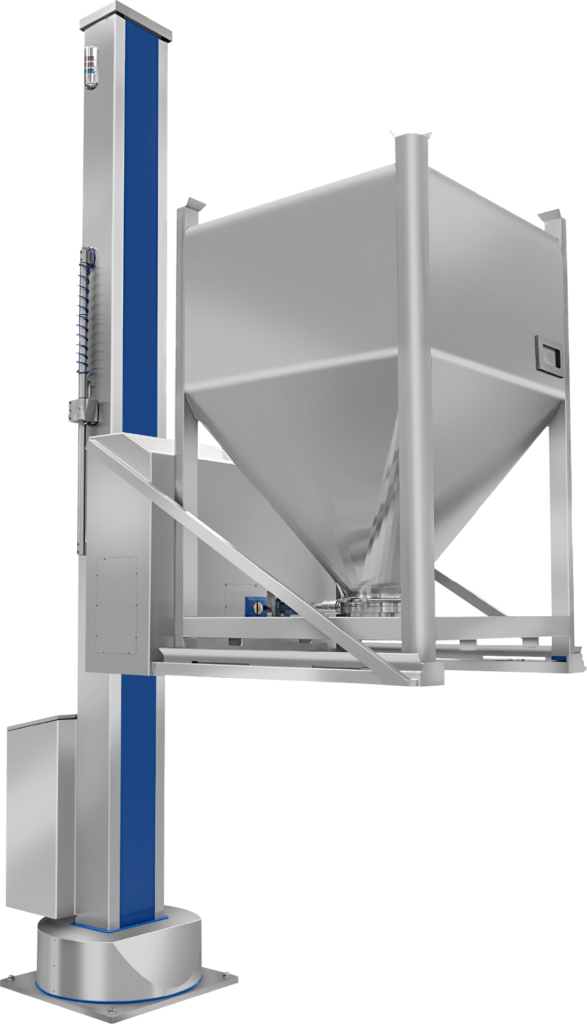

Column and Mobile Lifts

The lifts are engineered for gentle handling and blending of powders or tablets to minimize segregation, degradation, or breakage and are typically enclosed to control dust and prevent contamination. Available in stainless-steel designs, they integrate easily into pharmaceutical, food, chemical, and industrial manufacturing lines, supporting consistent material flow, operator safety, and clean, reliable operation.

Request More Information

Main Features

Stationary Column
- Bowl Inverters, In-Wall & In-Room Execution
Manual and Powered Slewing/Rotation
Bag Lifts (Hooks)
Palletized Bin Forks
Wheeled Bin Forks
Hazardous Execution
Pneumatic Bridge Breaker
Pneumatic Butterfly Valve Control
Motorized Valve Control for Manual Butterfly Valve
Mobile Applications
- Bins/Drums
- Sifters
- Vacuum Conveying Systems
Mills
- Mobile Lift/Trolly Options Available

Materials & Finishing

304 Stainless Steel
External Satin: RA = 0.8 μm

Column and Mobile Lifts

Request More Information

Lifting Columns

MODEL

G10

G20

G30

Column Capacity (Bin + Product) (For Column Lifter, Tilting Product Container, Additional Evaluation Need To Be Done)

Max 1,000 kg

Max 2,000 kg

Max 3,500 kg

Base

580 x 580

1000 x 1000

Fixing Point

Suggested on Floor + Ceiling (mandatory if h>4000)

Lifting Motor Power

1.45 kW

2 kW

3 kW

Lifter Raising Speed

4 m/min

Blending Movement Motor

7 kW

Blending Speed

5 – 15 rpm

Column Rotation Motor

0.25 kW

Standard Arm Wheelbase

1500 mm

Max. Column Rotation

350°

PC Touch Screen (optional)

PC Panel 15”

Touch Screen HMI

Siemens TP900

Lamp and buzzer for machine movement indication

Lifting Columns

MODEL

Column Capacity (Bin + Product) (For Column Lifter, Tilting Product Container, Additional Evaluation Need To Be Done)

G10

Max 1,000 kg

G20

Max 2,000 kg

G30

Max 3,500 kg

MODEL

Base

G10

580 x 580

G20

1000 x 1000

G30

1000 x 1000

MODEL

Fixing Point

G10

Suggested on Floor + Ceiling (mandatory if h>4000)

G20

Suggested on Floor + Ceiling (mandatory if h>4000)

G30

Suggested on Floor + Ceiling (mandatory if h>4000)

MODEL

Lifting Motor Power

G10

1.45 kW

G20

2 kW

G30

3 kW

MODEL

Lifter Raising Speed

G10

4 m/min

G20

4 m/min

G30

4 m/min

MODEL

Blending Movement Motor

G10

7 kW

G20

7 kW

G30

7 kW

MODEL

Blending Speed

G10

5 – 15 rpm

G20

5 – 15 rpm

G30

5 – 15 rpm

MODEL

Column Rotation Motor

G10

0.25 kW

G20

0.25 kW

G30

0.25 kW

MODEL

Standard Arm Wheelbase

G10

1500 mm

G20

1500 mm

G30

1500 mm

MODEL

Max. Column Rotation

G10

350°

G20

350°

G30

350°

MODEL

PC Touch Screen (optional)

G10

PC Panel 15”

G20

PC Panel 15”

G30

PC Panel 15”

MODEL

Touch Screen HMI

G10

Siemens TP900

G20

Siemens TP900

G30

Siemens TP900

MODEL

G10

Lamp and buzzer for machine movement indication

G20

Lamp and buzzer for machine movement indication

G30

Lamp and buzzer for machine movement indication

MODEL

G01M

G02M

G03M

Column Capacity (Bin + Product)

Max 100 kg

Max 200 kg

Max 1,000 kg

Handling Type

Manual

Electric

Lifting Type

Manual/Electric: 0.4 kW

Electric: 1.45 kW

Lifter Raising Speed

4 m/min

Maximum Lifting Column Height

2000 mm

Maximum Discharging Height (as standard)

1500 mm

Standard Arm Wheelbase

800 mm

1000 mm

Touch Screen HMI

Siemens TP900

Lamp and buzzer for machine movement indication (no available for manual lifter)

MODEL

Column Capacity (Bin + Product)

G01M

Max 100 kg

G02M

Max 200 kg

G03M

Max 1,000 kg

MODEL

Handling Type

G01M

Manual

G02M

Manual

G03M

Electric

MODEL

Lifting Type

G01M

Manual/Electric: 0.4 kW

G02M

Manual/Electric: 0.4 kW

G03M

Electric: 1.45 kW

MODEL

Lifter Raising Speed

G01M

4 m/min

G02M

4 m/min

G03M

4 m/min

MODEL

Maximum Lifting Column Height

G01M

2000 mm

G02M

2000 mm

G03M

2000 mm

MODEL

Maximum Discharging Height (as standard)

G01M

1500 mm

G02M

1500 mm

G03M

1500 mm

MODEL

Standard Arm Wheelbase

G01M

800 mm

G02M

800 mm

G03M

1000 mm

MODEL

Touch Screen HMI

G01M

Siemens TP900

G02M

Siemens TP900

G03M

Siemens TP900

MODEL

G01M

Lamp and buzzer for machine movement indication (no available for manual lifter)

G02M

Lamp and buzzer for machine movement indication (no available for manual lifter)

G03M

Lamp and buzzer for machine movement indication (no available for manual lifter)
